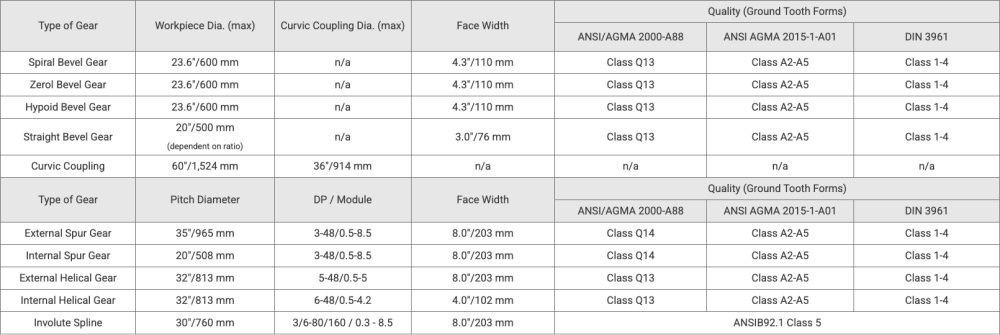

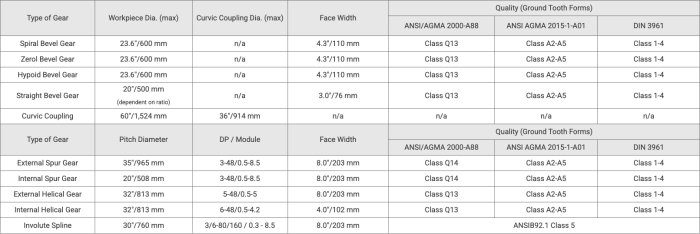

Gear Type Program

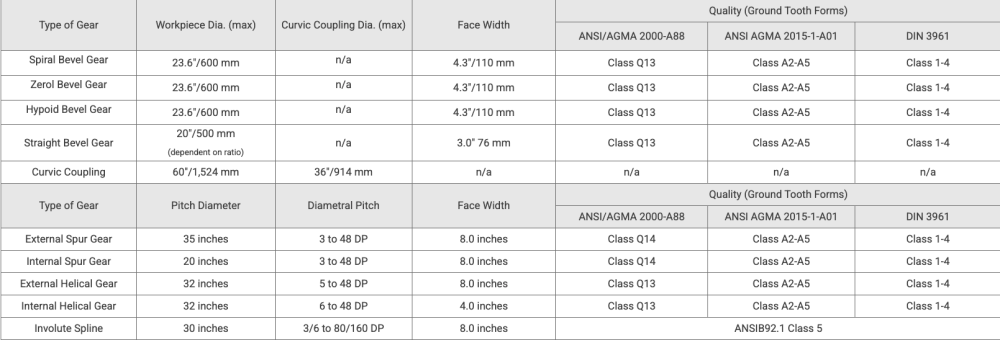

| Type of Gear | Workpiece Dia. (max) | Curvic Coupling Dia. (max) | Face Width | Quality (Ground Tooth Forms) | ||
| ANSI/AGMA 2000-A88 | ANSI AGMA 2015-1-A01 | DIN 3961 | ||||
| Spiral Bevel Gear | 23.6"/600 mm | n/a | 4.3"/110 mm | Class Q13 | Class A2-A5 | Class 1-4 |
| Zerol Bevel Gear | 23.6"/600 mm | n/a | 4.3"/110 mm | Class Q13 | Class A2-A5 | Class 1-4 |
| Hypoid Bevel Gear | 23.6"/600 mm | n/a | 4.3"/110 mm | Class Q13 | Class A2-A5 | Class 1-4 |
| Straight Bevel Gear | 20"/500 mm (dependent on ratio) |
n/a | 3.0" 76 mm | Class Q13 | Class A2-A5 | Class 1-4 |
| Curvic Coupling | 60"/1,524 mm | 36"/914 mm | n/a | n/a | n/a | n/a |
| Type of Gear | Pitch Diameter | Diametral Pitch | Face Width | Quality (Ground Tooth Forms) | ||
| ANSI/AGMA 2000-A88 | ANSI AGMA 2015-1-A01 | DIN 3961 | ||||
| External Spur Gear | 35 inches | 3 to 48 DP | 8.0 inches | Class Q14 | Class A2-A5 | Class 1-4 |
| Internal Spur Gear | 20 inches | 3 to 48 DP | 8.0 inches | Class Q14 | Class A2-A5 | Class 1-4 |

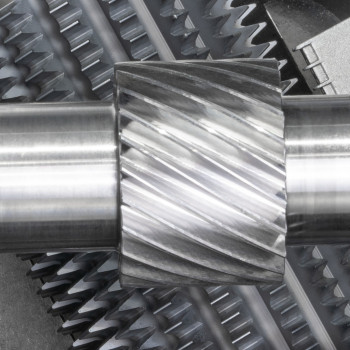

| External Helical Gear | 32 inches | 5 to 48 DP | 8.0 inches | Class Q13 | Class A2-A5 | Class 1-4 |
| Internal Helical Gear | 32 inches | 6 to 48 DP | 4.0 inches | Class Q13 | Class A2-A5 | Class 1-4 |
| Involute Spline | 30 inches | 3/6 to 80/160 DP | 8.0 inches | ANSIB92.1 Class 5 | ||
Process Capabilities
Bevel Gear Design

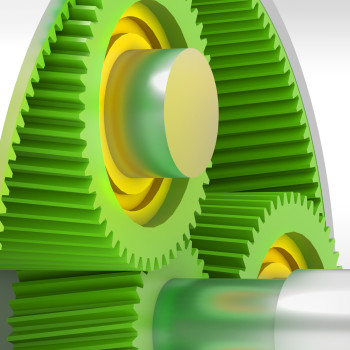

Cylindrical Gear Design

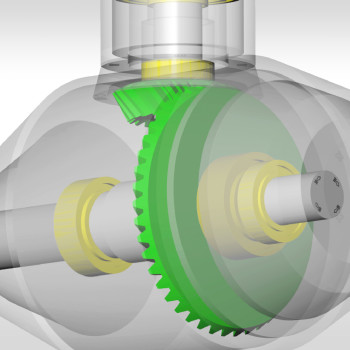

Gear Box and Transmission Design

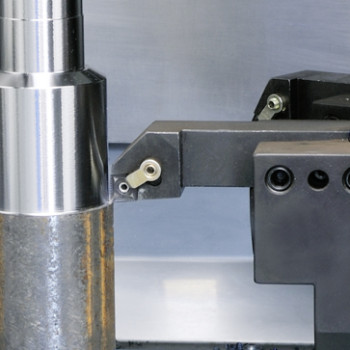

Turning, Milling, 5-Axis Machining

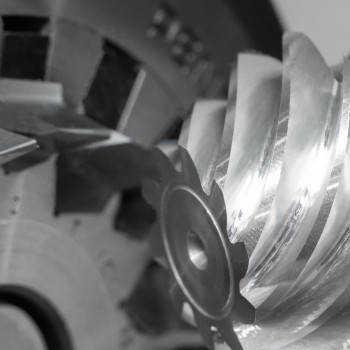

Spiral Bevel Gear Cutting

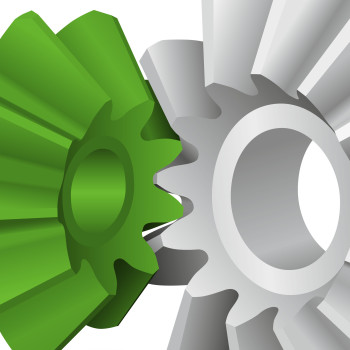

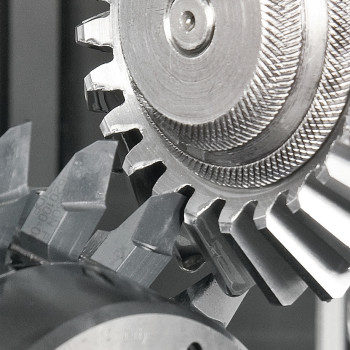

Straight Bevel Gear Cutting
Bevel Gear Grinding

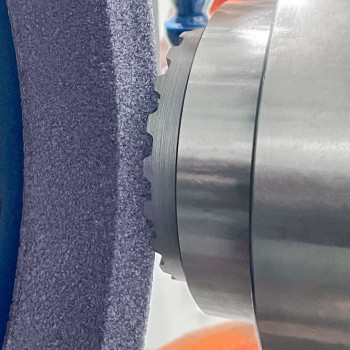

Curvic Coupling Grinding
Hobbing

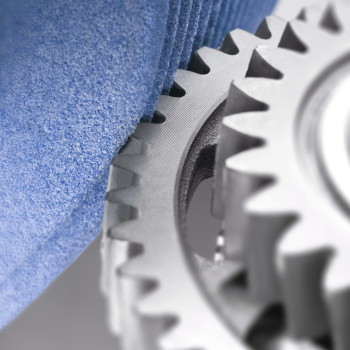

Threaded Wheel Grinding

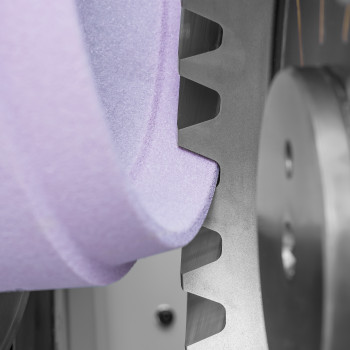

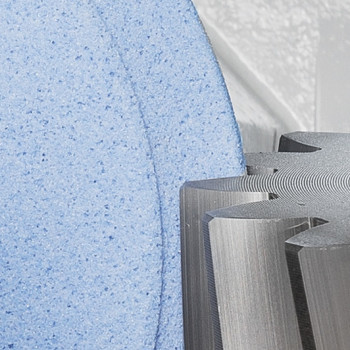

Profile Grinding

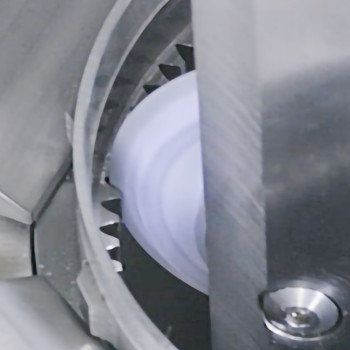

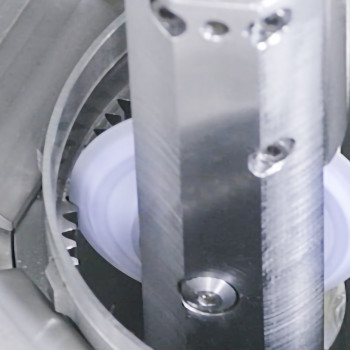

Internal Profile Grinding
Quenching / Hardening

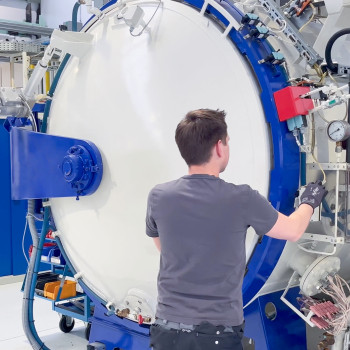

Low Pressure Vacuum Carburizing

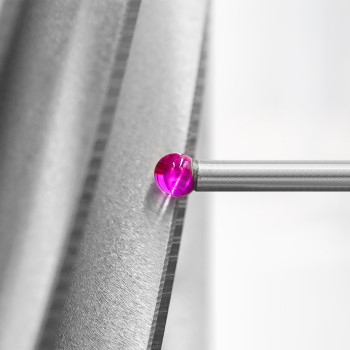

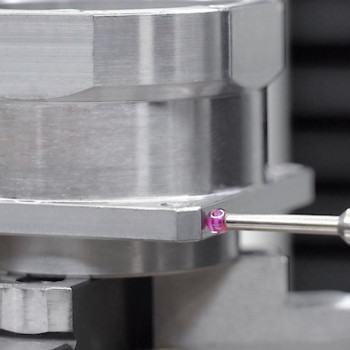

Coordinate Measuring

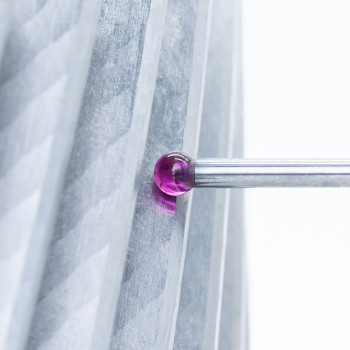

Gear Inspection
Finishes & Coatings

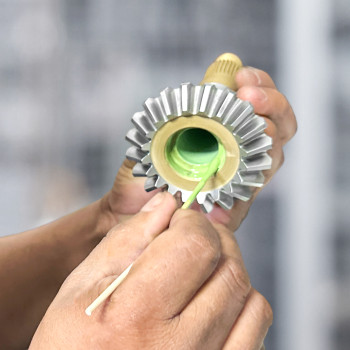

Component Assembly
